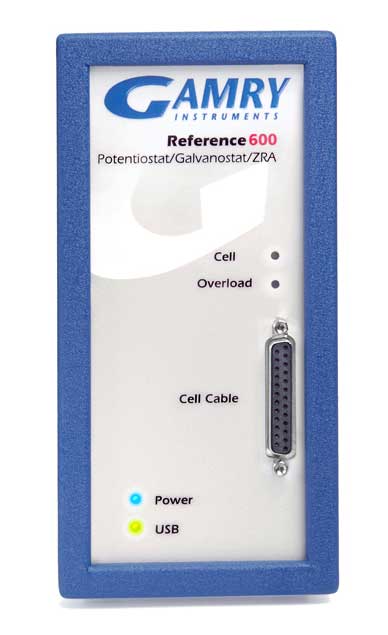

Reference 600™

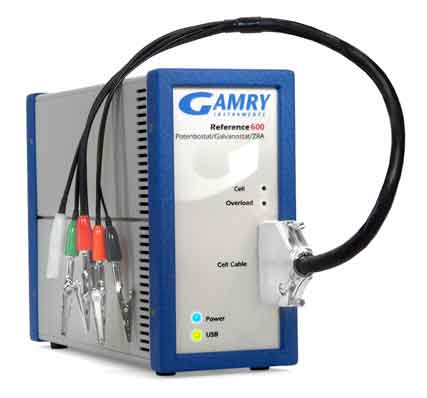

The Reference 600 is a high performance, stand alone, computer-controlled potentiostat/galvanostat/ZRA that interfaces with a computer via USB. The Reference 600 is particularly suitable for applications in physical electrochemistry, sensors, coatings, and corrosion.

Overview

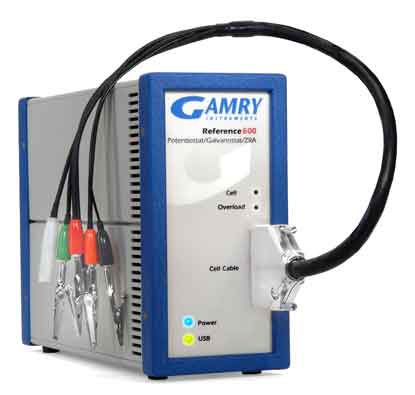

The Reference 600 is a high performance, research grade potentiostat/galvanostat/ZRA. The Reference 600 has 11 current ranges from 600 milliamps to 60 picoamps and a compliance voltage of +/- 22 volts. The Reference 600 has on-board electronics for electrochemical impedance spectroscopy measurements over a frequency range of 1 MHz down to 10 microHz. Attention to detail in component selection and design yields a potentiostat with one of the lowest noise specifications in the industry.

Applications

  • Physical Electrochemistry
  • Sensor Development
  • Corrosion Measurements
  • Coatings Evaluation
  • Microelectrodes
  • Fast Cyclic Voltammetry
  • Electrochemical Noise

Standard Features

  • 2, 3, and 4 electrode measurements
  • 3 Control Modes
    • Potentiostatic, Galvanostatic and Zero Resistance Ammeter.
  • Electrical Isolation
    • Floating instrument: use with autoclaves, mechanical stress apparatus, or pipeline probes.
  • Portable

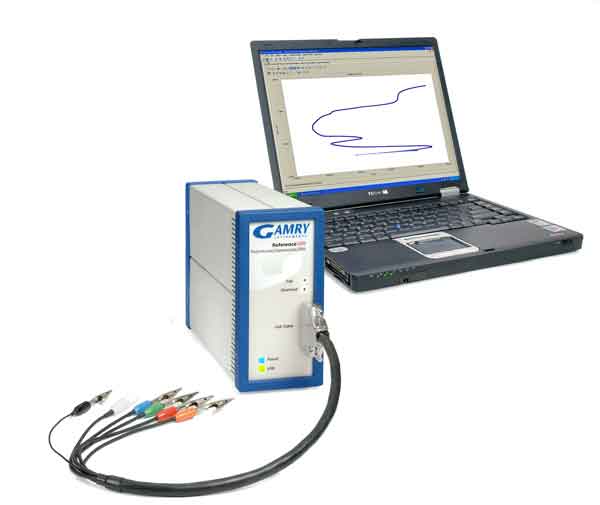

    • Size of a chemistry textbook, weighing only 3 kgs (6.6 lbs). Easy USB 2.0 connection to a Windows computer.
  • Built-In EIS
    • On-board DDS to perform EIS from 10µHz to 1MHz. See Accuracy Contour Plots below.
  • DSP (Digital Signal Processing) Mode
    • Oversamples for improved signal-to-noise.
  • Current Interrupt and Positive Feedback iR Compensation
    • Gamry potentiostats and their controlling software use control loop algorithms to accurately measure and correct for uncompensated resistance.
  • Auxiliary I/O

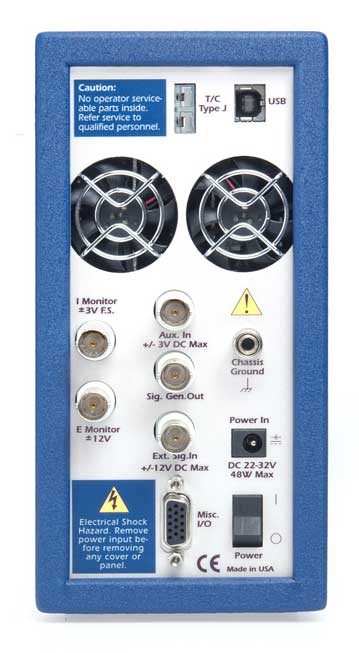

    • Control additional equipment via additional I/O interfaces: external signal input, analog voltage output, analog current output, auxiliary A/D input, and digital I/O connector.
  • Multiple Potentiostat Capability
    • Up to eight Reference 600 Potentiostats can be attached and installed on one computer, running at the same time performing separate experiments (requires USB hub).

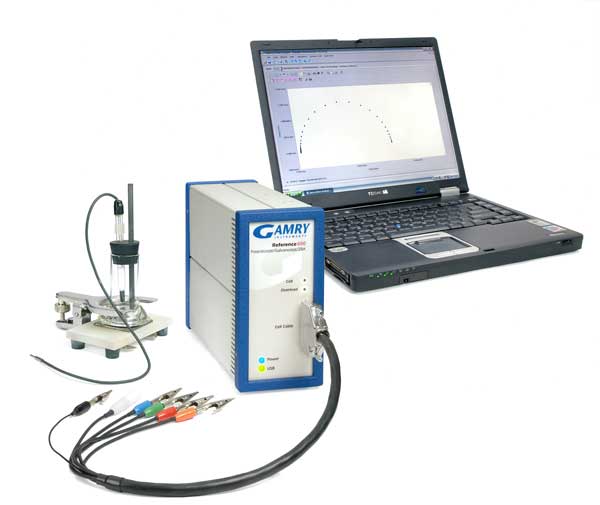

  • Fast Setup
    • Load the Gamry software, connect the USB cable, and start your experiments.
  • Warranty
    • Protected by 2-year factory service warranty.

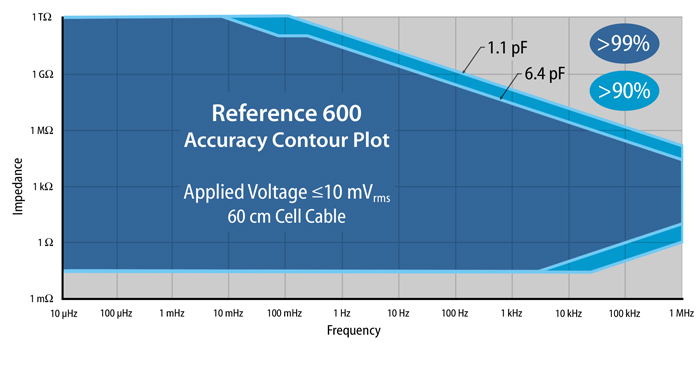

Accuracy Contour Plot

The Accuracy Contour Plot provides a detailed look at the performance you can expect from your instrument in real-world situations. The results include the cell cable.



Options

  • Low Impedance Cable Kit
    • A low impedance cable kit is available for making measurements on low impedance devices such as batteries, fuel cells and supercapacitors.
  • Extended Cable Lengths
    • Extended length cell cables (1.5 m, 3 m, 10 m) are also available for your convenience.




REFERENCE 600
Potentiostat YES
Galvanostat YES
Zero Resistance Ammeter YES
Cell Connections 2, 3, or 4
Floating (Isolated from Earth)  YES


WEIGHT

3 kg

DIMENSIONS

9 (W) x 19 (H) x 27 (D) cm


SYSTEM


Max Current ±600 ma
Current Ranges 11 (60 pA - 600 mA)
Current Ranges (w/Internal
Gain applied)
13 (600 fA - 600 mA)
Min Voltage Resolution 1 μV
Min Current Resolution 20 aA
Max Applied Potential ±11 V
Rise Time <250 ns
Noise and Ripple <10 μV rms
Noise and Ripple (typical) <2 μV rms
Min Time Base 3.333 μs
Max Time Base 715 s
Min Potential Step 12.5 μV
Analog/Digital Converter 16 bit
Max Data Points Per Experiment 262,143


EIS MEASUREMENT


Frequency Range 10 μHz - 1 MHz
EIS Accuracy See Accuracy
Contour Plot
Max AC Amplitude 2110 mV rms
Min AC Amplitude 4.03 μV rms


CONTROL AMP


Compliance Voltage ±22 V
Output Current >± 600 mA
Speed Settings 5
Unity Gain Bandwidth  980, 260, 40, 4, 0.4 kHz


ELECTROMETER


Input Impedance >1014 Ω
Input Current <5 pA
Input Current (typical) <2 pA
Bandwidth (-3dB) (typical) >15 MHz
Common Mode Rejection Ratio >80 dB (3 Hz)
>60 dB (1 MHz)


APPLIED POTENTIAL


Accuracy ±1 mV ±0.2% of setting
Accuracy (typical) ±375 μV ±0.04% of reading
Resolution 12.5 μV, 50 μV, 200 μV/bit
Drift <20μV/°C
Potential Scan Range ±0.4 V, ±1.6 V, ±6.4 V


MEASURED POTENTIAL


Accuracy ±1 mV ±0.3% of reading
Accuracy (typical) ±250 μV ±0.05% of reading
Full-Scale Ranges 32 V, 12 V, 3 V, 300 mV, 30 mV
Resolution 400 μV, 100 μV, 10 μV, 1 μV/bit
Offset Range ±10 V


APPLIED CURRENT


Accuracy ±10 pA ±0.3% of range
Accuracy (typical) ±3 pA ±0.08% of range
Resolution 0.0033% full-scale/bit


MEASURED CURRENT


Accuracy ±10 pA ±0.3% of range
Accuracy (typical) ±3 pA ±0.12% of range
Resolution 0.0033% full-scale/bit
Bandwidth (-3 dB)
NOTE: Bandwidth is current
         range dependent.
> 10 MHz (600 mA - 600 μA)
> 1.5 MHz (60 μA)
> 0.15 MHz (6 μA)
Stability Settings 4
Post Offset Gain 1, 10, 100
Offset Range ±1X full-scale


iR COMPENSATION


Mode Current Interrupt and
Positive Feedback
Min Interrupt Time 33 μs
Max Interrupt Time 715 s


AUXILIARY A/D INPUT


Range ±3 V
Resolution 0.1 mV
Input Impedance >100 kΩ or >10 GΩ


AUXILIARY D/A OUTPUT


Range 0-4 V
Resolution 1 mV
